特性&优势
产品图片仅供参考，以实物为准。
- COMING SOON
CD13DG1
13 厘米 11 系列模块化辅助下吸式油烟机
- 11系列
- 简约风格
这款吸油烟机具有强大的抽排功能，可以无缝安装到您的台面上。与我们的主电磁灶和其他模块化炉灶结合使用，打造终极烹饪解决方案。
- 完成
- Grey

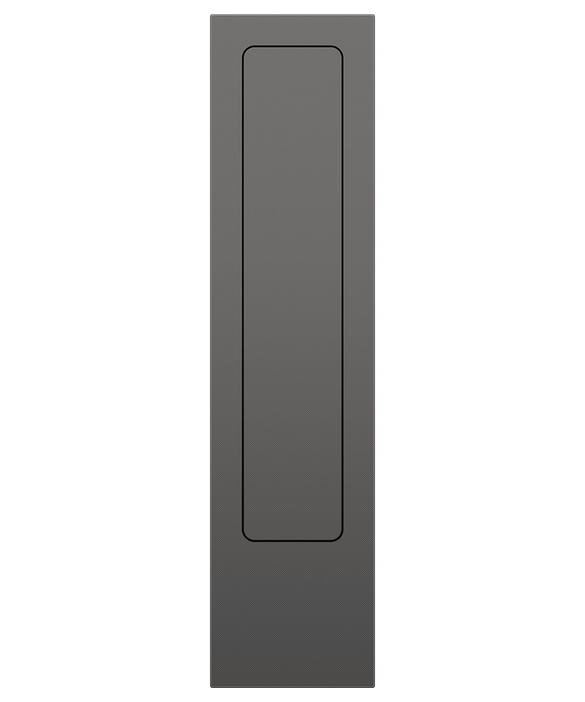

13 厘米 11 系列模块化辅助下吸式油烟机
- 我们独特的模块化烹饪解决方案的一部分。与主炉灶搭配使用，享受一体化的烹饪体验
- 与厨房无缝集成，无需顶置吸油烟机
- 可与相邻的炉灶模块连接，并以适合烹饪的速度自动抽排
- 五档风扇速度和增吸功能，可快速吸走异味和蒸汽
这个辅助吸油烟机专为与主模块化电磁灶搭配使用而设计，不能单独使用。
高度
186mm
宽度
130mm
深度
530mm
DESIGNED TO FIT
Modular Design Freedom

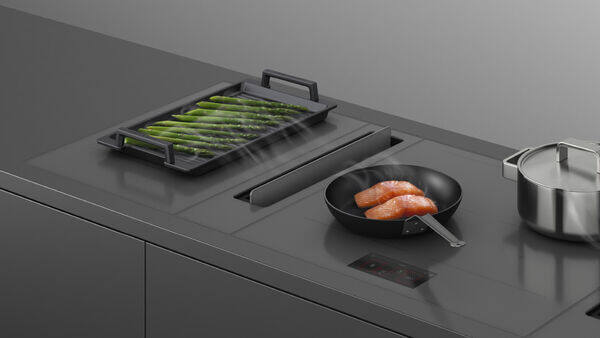

Enhance your cooking space with downdraft ventilation. These modules can be discreetly positioned alongside your primary cooktop and auxiliary modules, ensuring a fresh environment regardless of your chosen cooking method. Tailor your setup to reflect the way you live, cook, and entertain.
DESIGNED TO FIT
Sleek And Subtle
Redefine your kitchen's aesthetic with the downdraft ventilation module. Seamlessly integrated into the countertop and alongside cooktop modules, it allows for an open-style, social kitchen. Choose from elegant black glass or subtle grey glass finishes that complement your kitchen's design.
DESIGNED TO FIT
Design Versatility

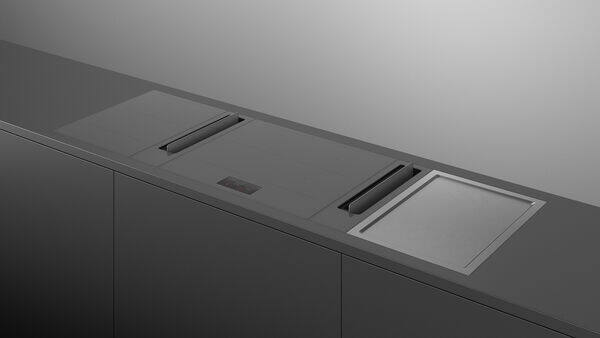

Ideal for layouts where traditional overhead hoods pose challenges, this ventilation module pairs beautifully with island cooktops and open kitchens. Its ability to retract or hide ensures a cleaner, more open appearance, enhancing your kitchen's functionality and design.
PERFECT RESULTS
Quiet Efficiency
The auxiliary ventilation module operates efficiently and discreetly in the background, seamlessly controlled via the primary module touchscreen. With five fan speeds plus a boost function, it quickly removes steam, odours, and grease.
BEAUTIFUL TO USE
Intuitive Extraction

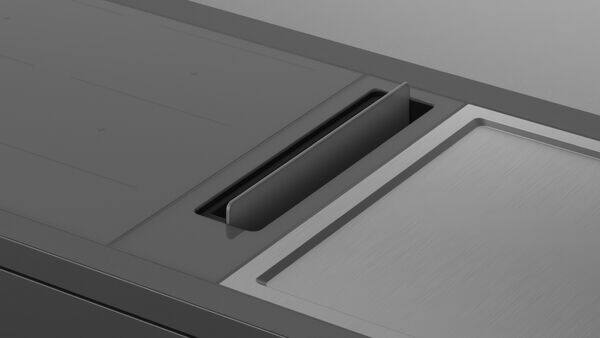

Simply open the cover and enjoy convenient extraction with Link Mode. The fan intuitively activates, adjusting its speed according to the power levels of nearby cooktop zones, eliminating the need for manual adjustments. Even after you have finished cooking, the fan remains active to capture any remaining vapours.
RESPECT FOR THE PLANET
Prolonged Freshness
A Delayed Off timer ensures that cooking smells continue to be extracted even after you've finished cooking. Additionally, the timer will automatically shut off the ventilation after a preset time, reducing energy waste if you forget to turn it off.
BEAUTIFUL TO USE
Easy To Clean
The nine-layer filter effectively traps grease particles during extraction. Designed for simple removal, the filters are easy to clean and dishwasher safe.
规格
- 高度
- 186mm
- 宽度
- 130mm
- 深度
- 530mm
排风量
| 排风量 Attributes | Value |
|---|---|
| 1速噪声 | 42dBA |
| Maximum sound rating | 78dBA |
| 最大空气运动 | 519m³/hr |
安装和清洁
| 安装和清洁 Attributes | Value |
|---|---|
| 不锈钢过滤器罩 | |
| 可放入洗碗机清洗的过滤器 | 1 |
| 循环 | Optional |
性能
| 性能 Attributes | Value |
|---|---|
| 抽吸类型 | Surface |
| 过滤器数量 | 1 |
| 过滤器类型 | Mesh with Stainless Steel filter cover |
| 风扇速度 | 5 + Boost |
电源要求
| 电源要求 Attributes | Value |
|---|---|
| 总功率 | 167W |
| 电源电压 | 220-240V |
| 电源频率 | 50Hz |
产品规格
| 产品规格 Attributes | Value |
|---|---|
| 宽度 | 130mm |
| 深度 | 530mm |
| 高度 | 186mm |
通风特性
| 通风特性 Attributes | Value |
|---|---|
| 自动断电/运行定时器 |
